YT-820JH
Product Details

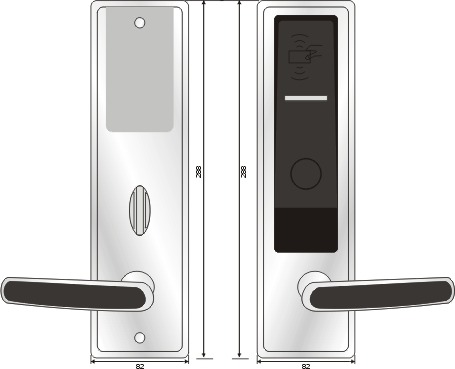

Mortise hotel card lock — panel 82 × 288 mm, mortise case 26 × 203 × 90 mm, backset 62 mm. Dimension drawing below; finishes and OEM/ODM options on request.
Overview
Mortise hotel card lock — panel 82 × 288 mm, mortise case 26 × 203 × 90 mm, backset 62 mm. See the dimension drawing below. Finishes and OEM/ODM options on request.

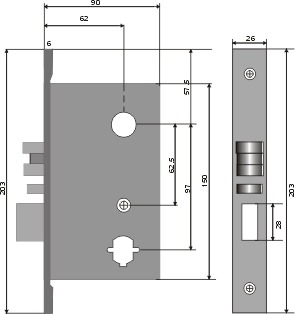

Dimension Drawing
Key dimensions: panel 82 × 288 mm, mortise case 26 × 203 × 90 mm, backset 62 mm.
Specifications
| Backset | 62 mm |
|---|---|
| Model | YT-820JH |
| Mortise Body Depth | 90 mm |
| Mortise Case Height | 203 mm |
| Mortise Case Thickness | 26 mm |
| Panel Height | 288 mm |
| Panel Width | 82 mm |
Downloads
Datasheets and manuals are uploaded by our team. Sign in or create a free account to download.
- YT-820JH datasheet (1492 KB) Download
