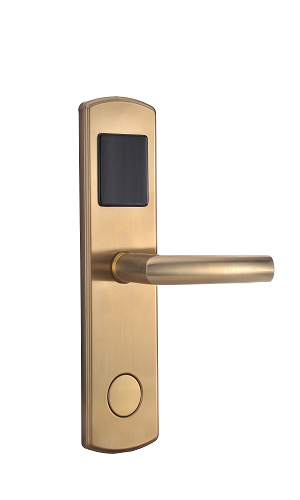

YT-601J
Release Time:
Hign security lock body, standard 5 latches mortise; No disturb function
Specifications
| Cards Quantity of Records | 220pcs |
|---|---|
| Door thickness range | 32-70mm |
| Dynamic Current | <110mA-150mA |
| Lower Voltage Warning | <4.8V (it can at least unlock for 250 times ) |
| M1 Sensor Frequency | 13.56MHZ |
| Materia | 304 stainless steel with PVD,plastic or metal cap |
| Reading Range | <3cm |
| Reading Time | <1s |
| Software Interface | PMS or Fedelio |
| Static Current | <15uA |
| T5557 Sensor Frequency | 125KHZ |
| Workding Volatage | 4PCS 1.5V LR6 alkaline batternes |
| Working Humidity | 20-80% |
| Working Temperature | -10-50°C |
Product Details
Product Features:
- Industrial standard main board design;
- Special treatment on surface with automatic SMT technique;
- Hign security lock body, standard 5 latches mortise;
- No disturb function;
RF Mifare 1 one card system
